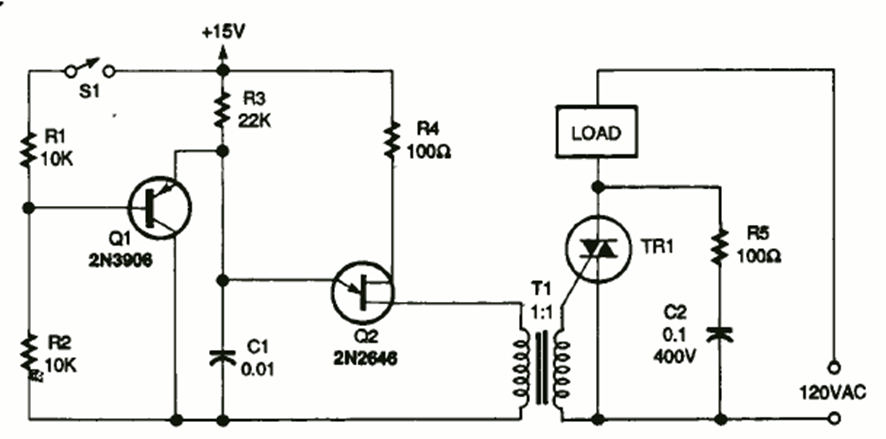

Unijunction Triac Control (CB25861E)

This power control circuit was found in an article in the June 1995 Electronis Now magazine. The circuit makes use of a trigger transformer.
