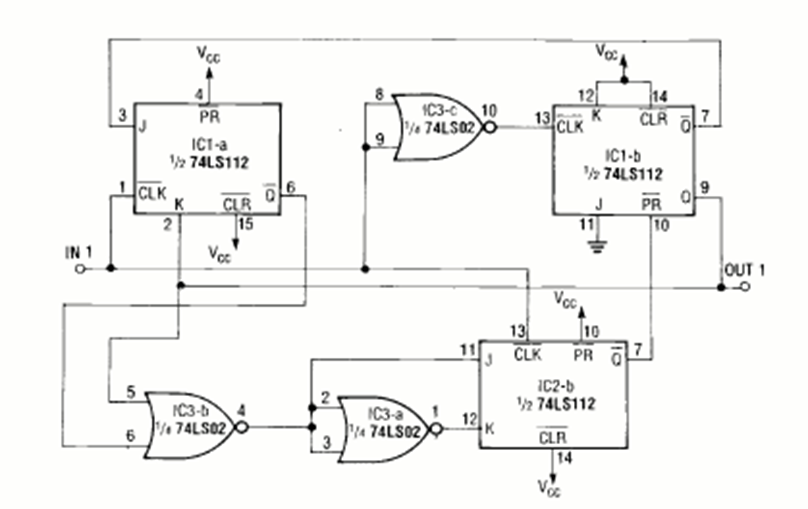

Divider by 5 in second version (CB25364E)

This is an improved version of the previous circuit also found in the December 1990 Radio Electronics magazine. The duty cycle is also 50%.
