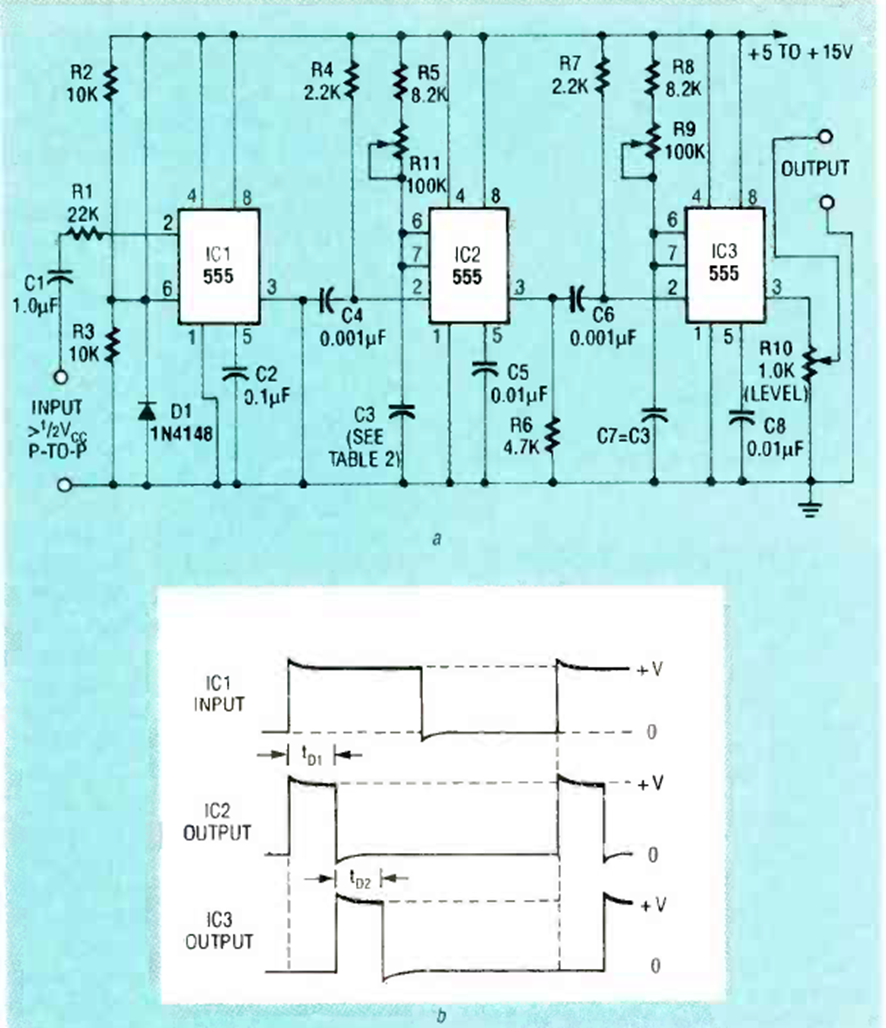

Found in a September 1992 Radio Electronics magazine article, this circuit generates a pulse as shown in the graph below the diagram. The timings can be changed by swapping C3 and C7.
| Clique na imagem para ampliar |
555 Delayed Pulse Generator (CB25507E)
- Details
- Written by: Newton C. Braga
