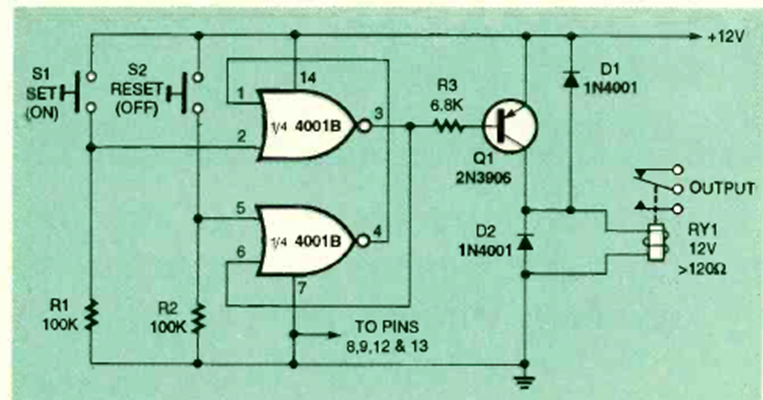

We found this circuit in the magazine Eletcronics Now of July 1994. The power supply is according to the relay and the transistor can be any general purpose one.
| Clique na imagem para ampliar |
Bistable Logic Relay (CB25738E)
- Details
- Written by: Newton C. Braga
