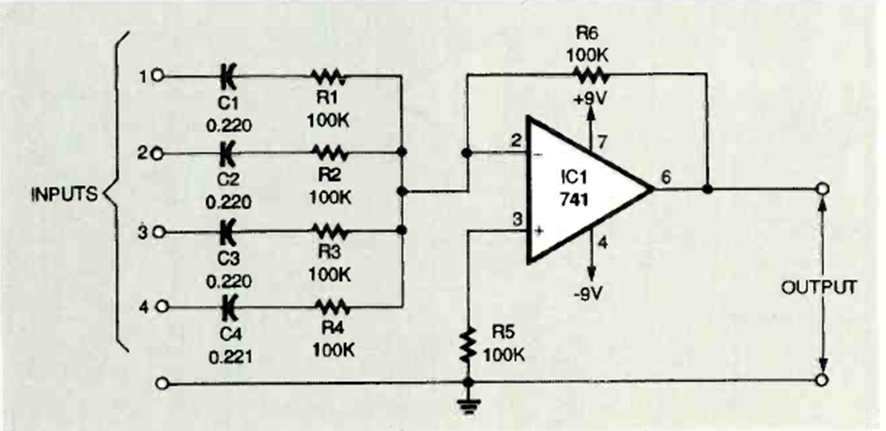

Adder with the 741 (CB25794E)

More inputs can be added to this adder that we found in the January 1995 Electronics Now magazine. Other operational ones can be used.

| Clique na imagem para ampliar |
