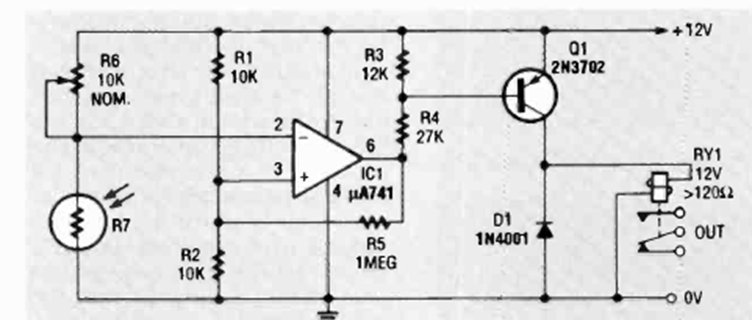

Precision Shadow Alarm 741 (CB25479E)

Details
Written by: Newton C. Braga



This circuit was found in the July 1992 Radio Electronics magazine. Sensitivity adjustment is made at R6. Supply voltage is matched to that of the relay.
