Mid-Range Filter (CB25143E)

Details
Written by: Newton C. Braga

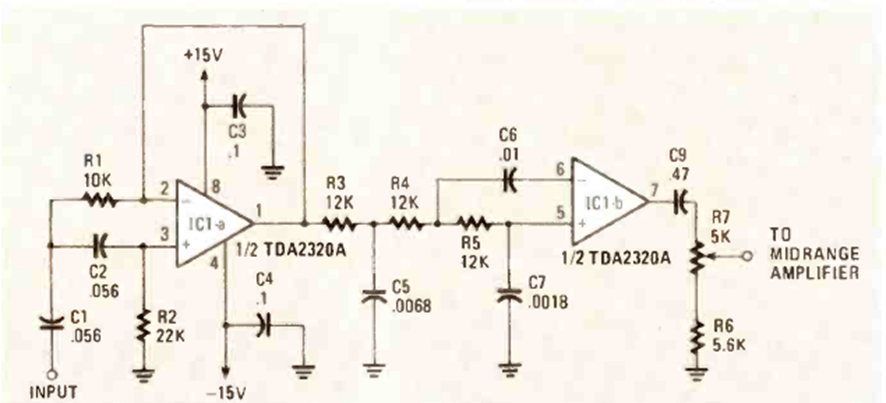

This midrange filter for sound systems was found in the May 1988 issue of Radio Electronics magazine. The circuit is based on a dual amplifier that must be powered by a symmetrical source.
