Active Antenna (CB25195E)

Details
Written by: Newton C. Braga

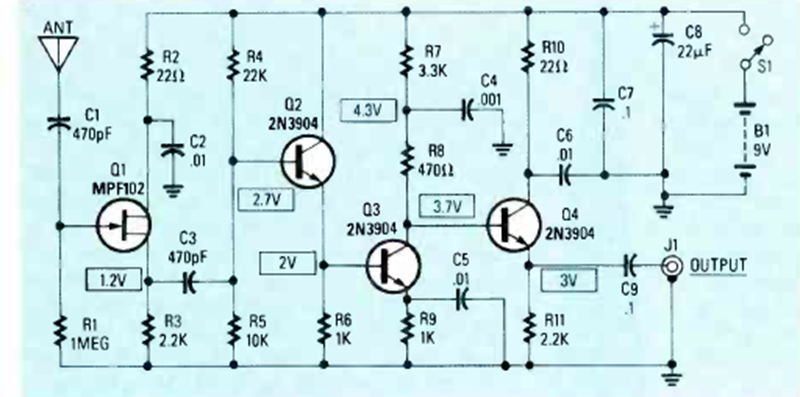

This circuit for signals up to 30 MHz can improve your reception in the medium and short-wave band. We found it in the Radio Electronics magazine of February 1989.




| Clique na imagem para ampliar |
