Function Generator (CB25312E)

Details
Written by: Newton C. Braga

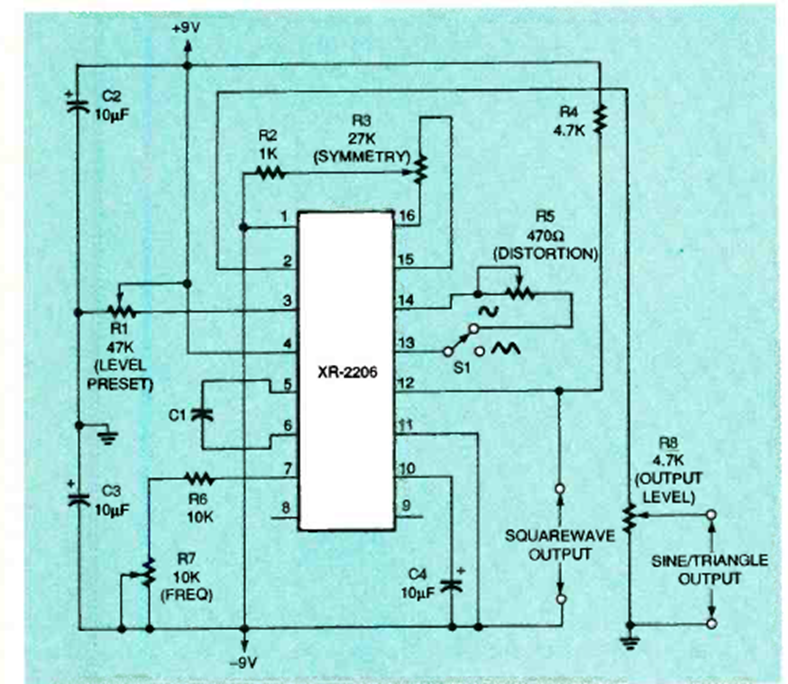

This circuit with a dual power supply generates sinusoidal, triangular and rectangular signals. We found it in the magazine Electronics Now of January 1996. The frequency goes up to a few megahertz.
