MAX452 Video Driver (CB25115E)

Details
Written by: Newton C. Braga

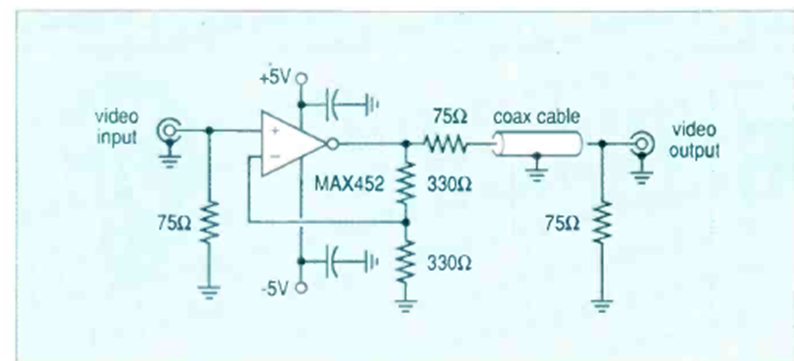

This circuit is for analog TV video signals and was found in the March 1988 issue of Radio Electronics magazine. The circuit uses a Maxim integrated circuit that can still be found.
