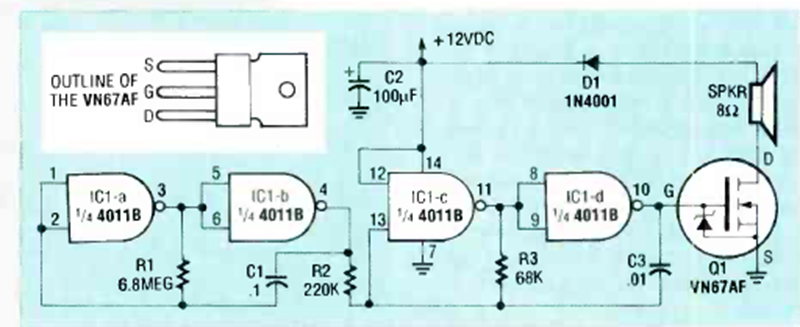

6W Variable Tone Siren (CB25213E)

This CMOS circuit was found in the July 1990 Radio Electronics magazine. Power is for a 12V supply.

| Clique na imagem para ampliar |
