CA3080 Amplifier with Phase and Amplitude (CB25135E)

Details
Written by: Newton C. Braga

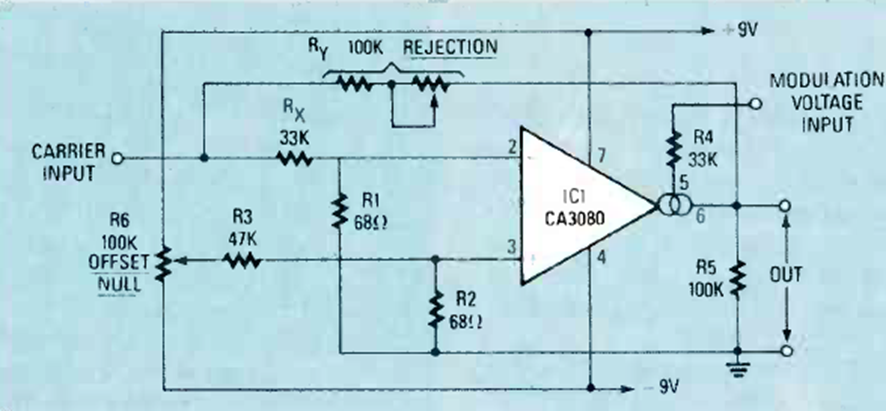

Phase and amplitude can be controlled in this circuit found in the May 1988 Radio Electronics magazine. The circuit requires a symmetrical power supply.




| Clique na imagem para ampliar |
