Switching Regulator (CB25207E)

Details
Written by: Newton C. Braga

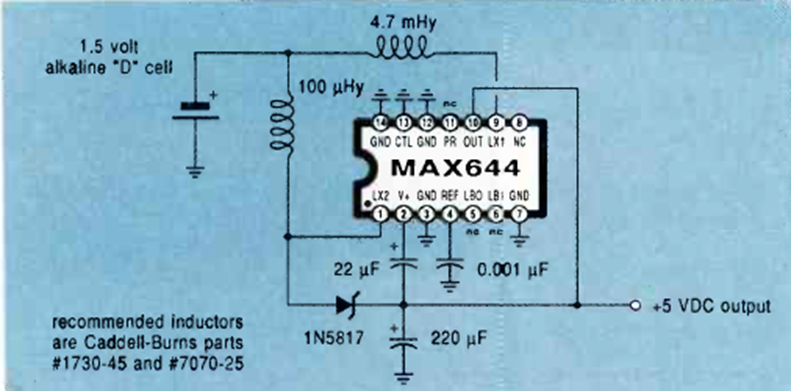

Using a MAX644 this circuit was found in the April 1989 issue of Radio Electronics magazine. The circuit is for a 5 V voltage and 50 mA current output.
