Power grid Transmitter (CB25181E)

Details
Written by: Newton C. Braga

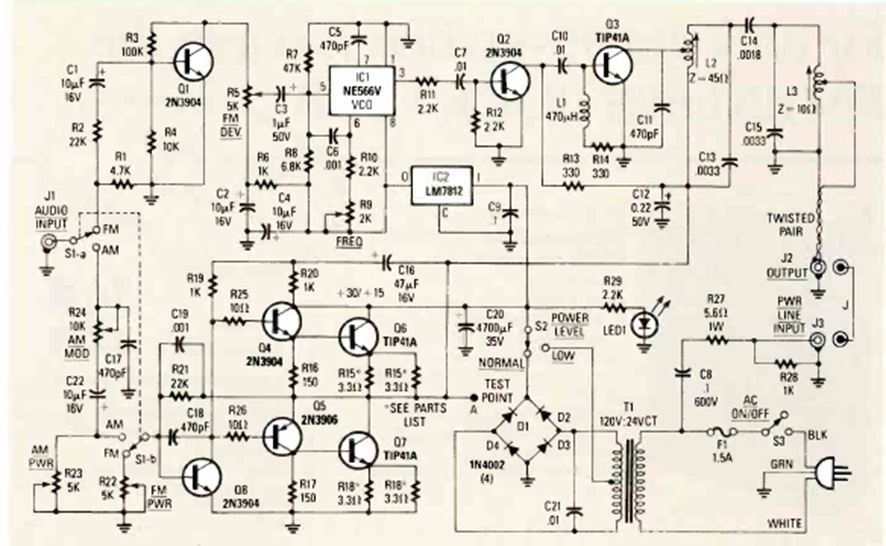

This circuit was found in the January 1989 issue of Radio Electronics magazine. The circuit sends audio signals by modulating a low-frequency carrier through the power grid.
