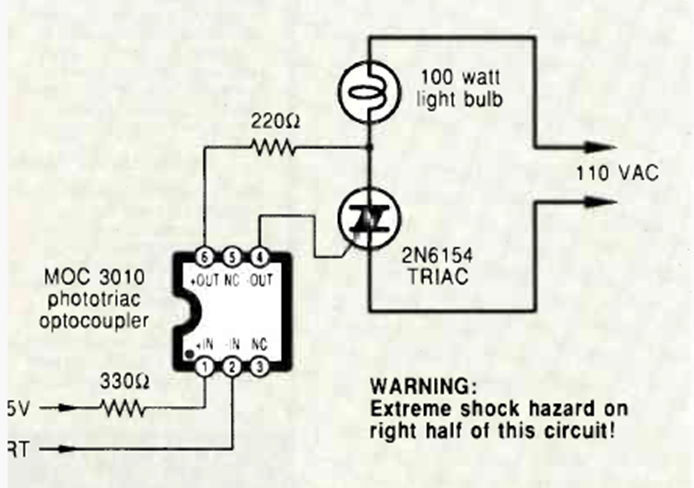

Shield for triac MOC3010 (CB25349E)

Details
Written by: Newton C. Braga



This shield circuit was obtained from Radio Electronics magazine, July 1990. The triac is load and power grid dependent.
