Voltage Controlled Low Pass Filter (CB25151E)

Details: Written by: Newton C. Braga

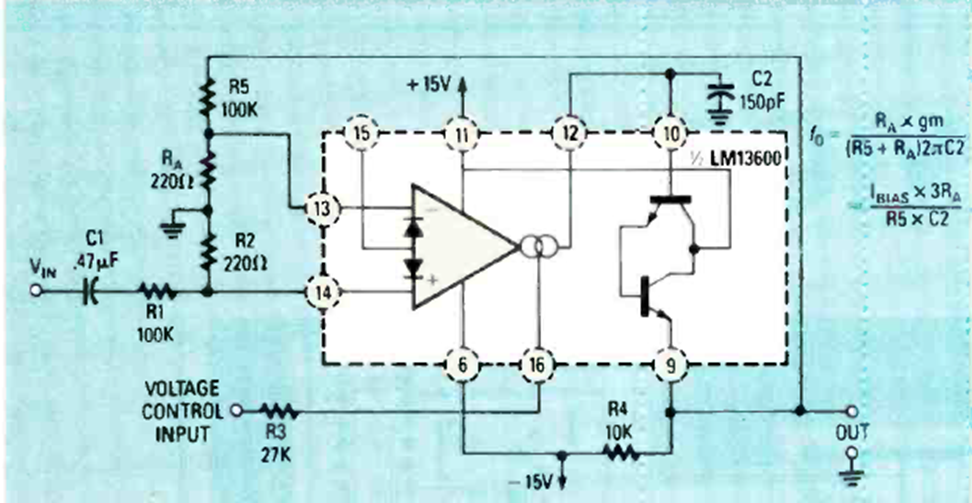

Based on an LM36000 OTA this circuit was found in the July 1988 issue of Radio Electronics magazine. It covers frequencies in the range of 45 Hz to 45 kHz.
