Variable range moving point (CB25154E)

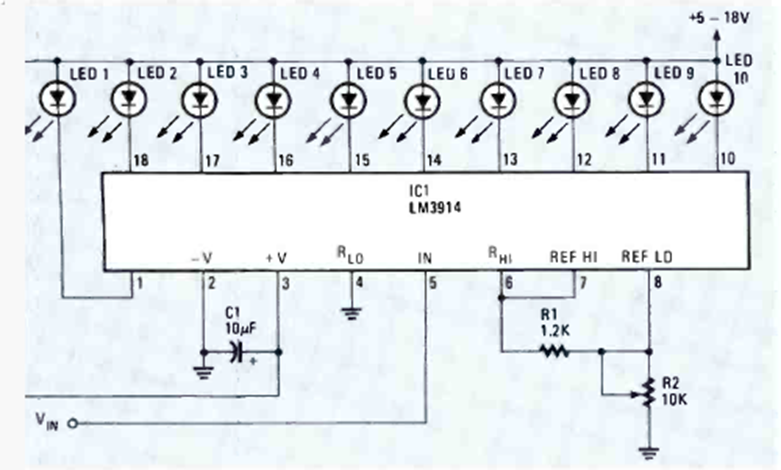

The figure shows how to use an LM3914 with a variable range moving point. The circuit has an operating point adjustment.

| Clique na imagem para ampliar |
