LM3900 Rectangular Oscillator (CB25179E)

Details
Written by: Newton C. Braga

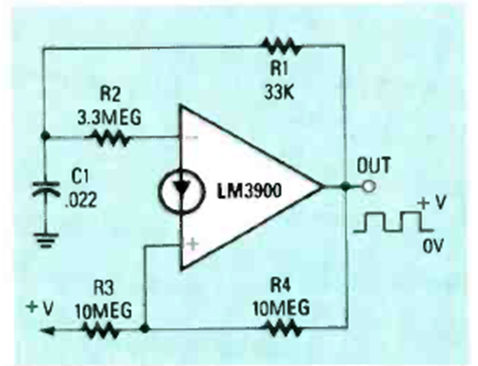

This 1 kHz oscillator uses a Norton LM3900 operating system. The frequency depends on C1 and R1 and can be changed.
