Audio stage for radio with LM386 (CB25295E)

Details
Written by: Newton C. Braga

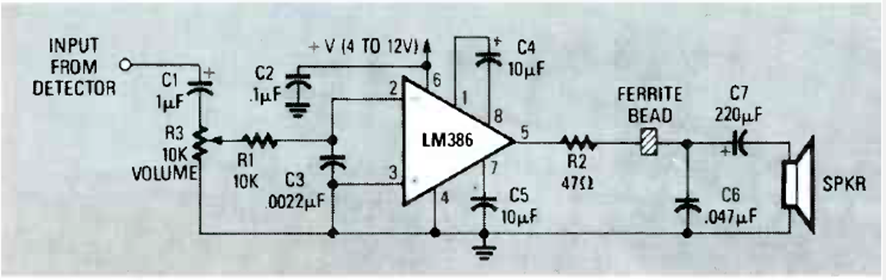

This circuit serves as an audio output for AM or even FM radios and was found in a Radio Electronics magazine from March 1990. Note the supply voltages.
