Square triangular VCO LM3600 (CB25153E)

Details
Written by: Newton C. Braga

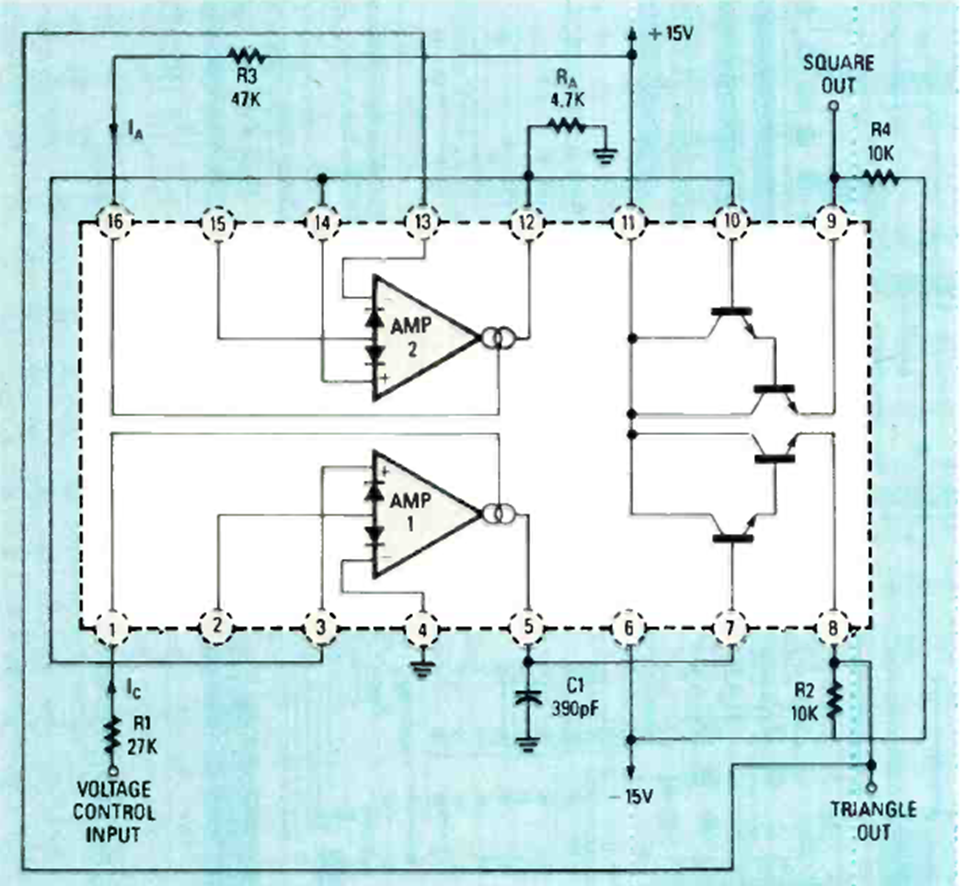

We found this circuit in the July 1988 Radio Electronics magazine. The frequencies are given by capacitor C1 and the voltage input is made at pin 1.
