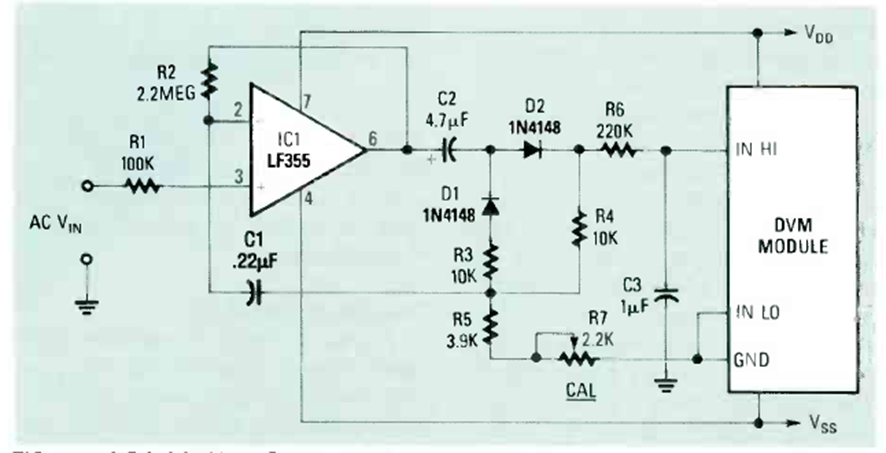

AC to DC Converter with DVM Module (CB25223E)

Details
Written by: Newton C. Braga



This circuit was found in the September 1989 issue of Radio Electronics magazine. The circuit uses components that support modern equivalents such as the operational amplifier.
