Two-Tone Humidity Sensor (CB25347E)

Details
Written by: Newton C. Braga

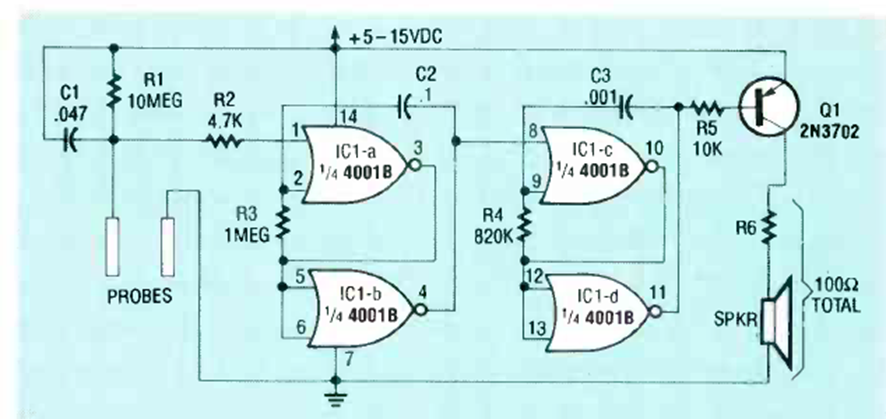

We found this circuit in the July 1990 issue of Radio Electronics magazine. The frequencies are given by capacitors C2 and C3, which can be changed.




| Clique na imagem para ampliar |
