LM386 CIR25319S CB25294E (CB25294E)

Details
Written by: Newton C. Braga

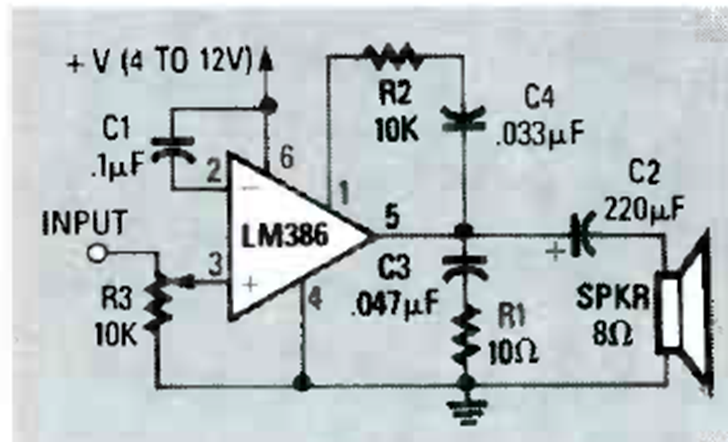

This circuit has a gain of 6 dB for low frequencies from 85 Hz and can be used in a mini subwoofer. The circuit is from a Radio Electronics from March 1990.




| Clique na imagem para ampliar |
