Divider by N (CB25201E)

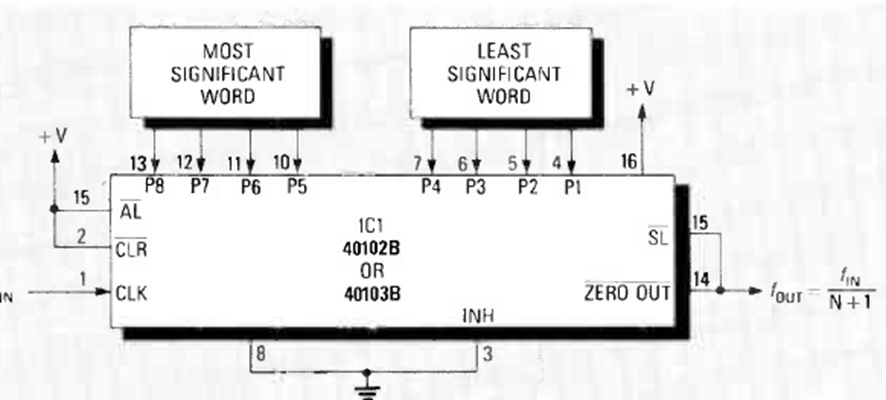

This circuit uses BCD switches to program the frequency to be divided. The circuit is from a Radio Electronics magazine from February 1989.
