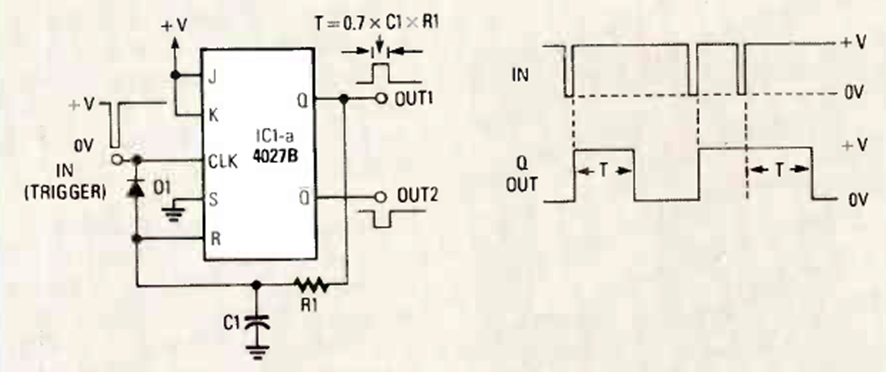

Retriggerable JK Flip Flop (CB25122E)

This circuit is from an April 1988 Radio Electronics magazine. The circuit is retriggerable and has complementary outputs.

| Clique na imagem para ampliar |

Low Pass Second Order Filter 741 (CB25818E)
This unity gain circuit was found in the February 1995 Electronics Now magazine. The frequency is 10 kHz,...
Pulse Compressor and Expander (CB6658E)
Found in a 1967 Electronic Design, this transistorized circuit compresses and then expands a pulse....
Simple pulse extender (CB8921E)
This TTL pulse stretcher or stretcher was found in a 90's EDN. The time constant R x C1 determines...
