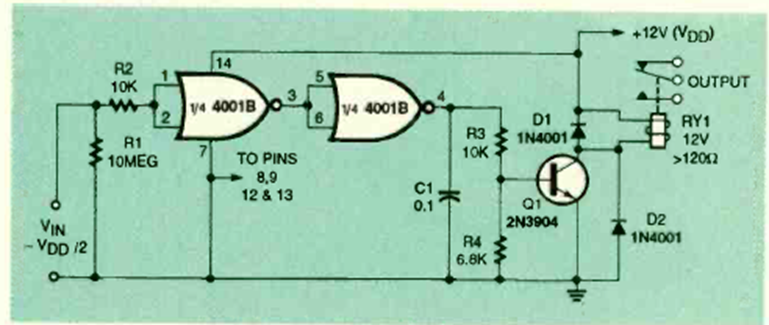

This circuit uses two 4001 ports to drive a relay. The circuit is from Electronics Now magazine, July 1994. The transistor is a general-purpose transistor, and the supply voltage is according to the relay.
| Clique na imagem para ampliar |
Dual-Gate Relay Control (CB25737E)
