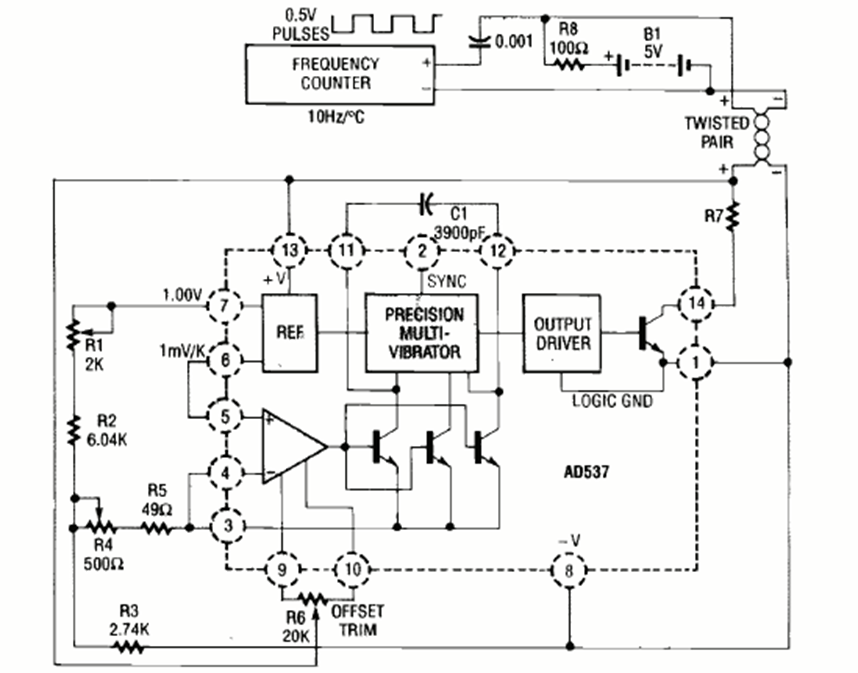

Using a V/F converter this circuit was found in the June 1991 issue of Radio Electronics magazine. The circuit allows temperatures to be read on a frequency meter.
| Clique na imagem para ampliar |
Temperature sensor with frequency output (CB25386E)
- Details
- Written by: Newton C. Braga
