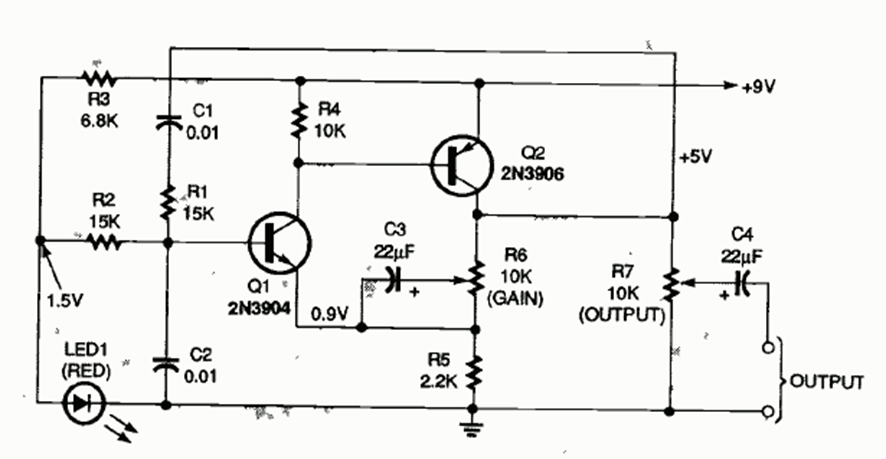

This low-frequency sine wave oscillator was found in the December 1995 issue of Electronics Now magazine. The two-transistor circuit is a Wien or Vienna bridge operating at 1 kHz.
| Clique na imagem para ampliar |
Wien Bridge Oscillator (CB25905E)
- Details
- Written by: Newton C. Braga
