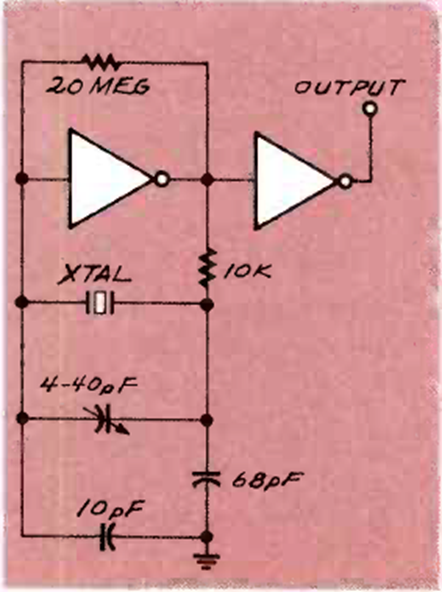

This oscillator with the 4049 can generate signals up to about 14 MHz according to the article in the Radio Electronics magazine of December 1992. The power supply can be between 6 and 12 V typically.
XTAL Oscillator up to 14 MHz (CB25535E)
- Details
- Written by: Newton C. Braga
