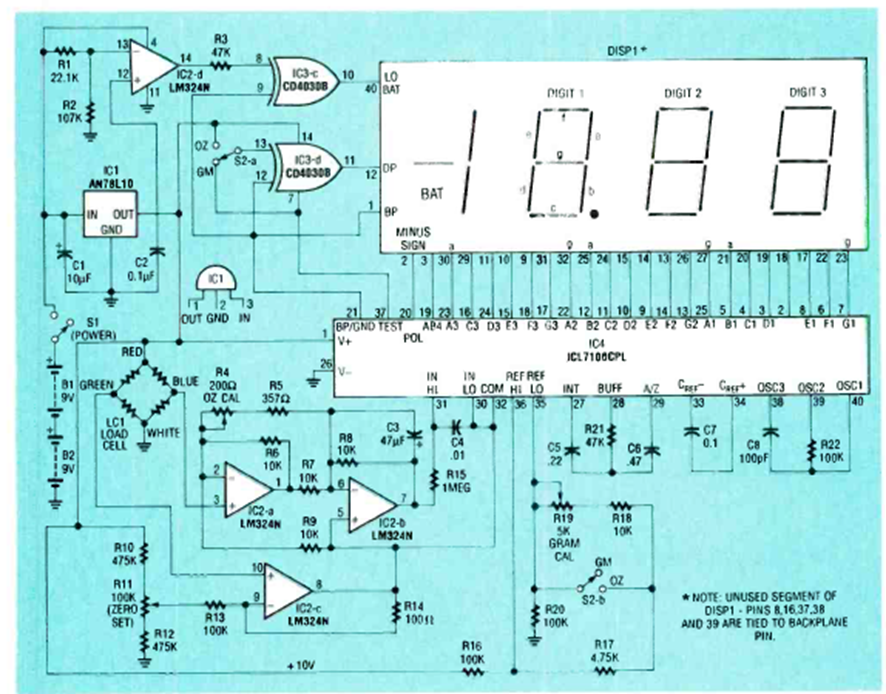

This circuit is from an article that teaches how to assemble it in the magazine Electronics Now from July 1993. It uses a liquid crystal display module from the time with 3 and a half digits.
