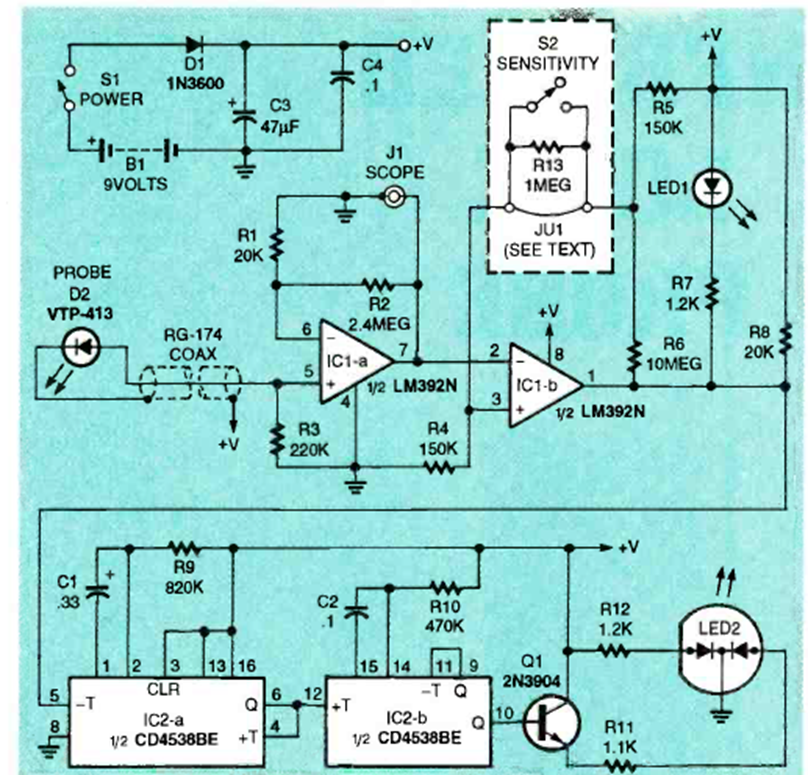

Infrared Logic Probe (CB25904E)

Details
Written by: Newton C. Braga



This circuit was described in an article in Electronics Now magazine in December 1995. The circuit uses integrated circuits that are still well known today.
