Heartbeat Detector (CB25472S)

Details
Written by: Newton C. Braga

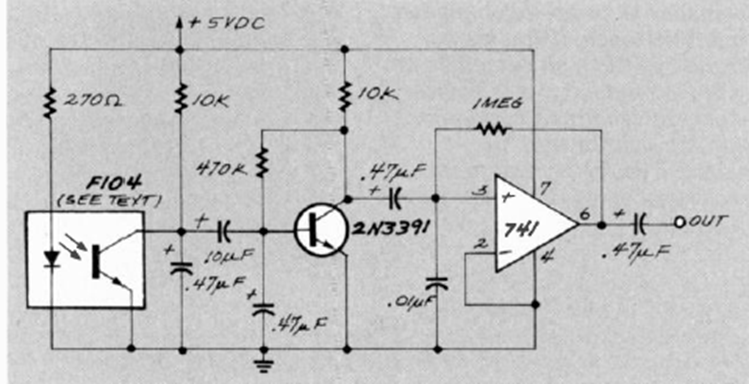

This heartbeat sensor circuit was found in the July 1992 issue of Radio Electronics magazine. The circuit uses a 741 with a single power supply.
