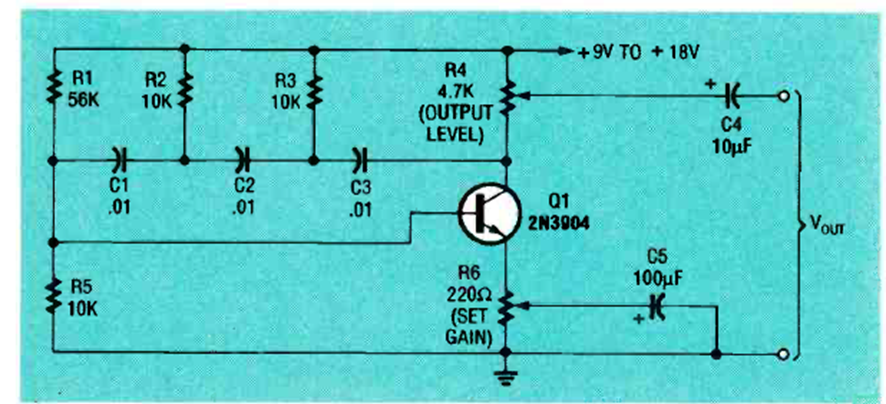

800 Hz Sine Oscillator (CB25580E)

Details
Written by: Newton C. Braga



In this phase shift circuit, the transistor can be any general-purpose transistor. The circuit is from an Electronics Now issue of June 1993.
