Digital Voltmeter (CB25562E)

Details
Written by: Newton C. Braga

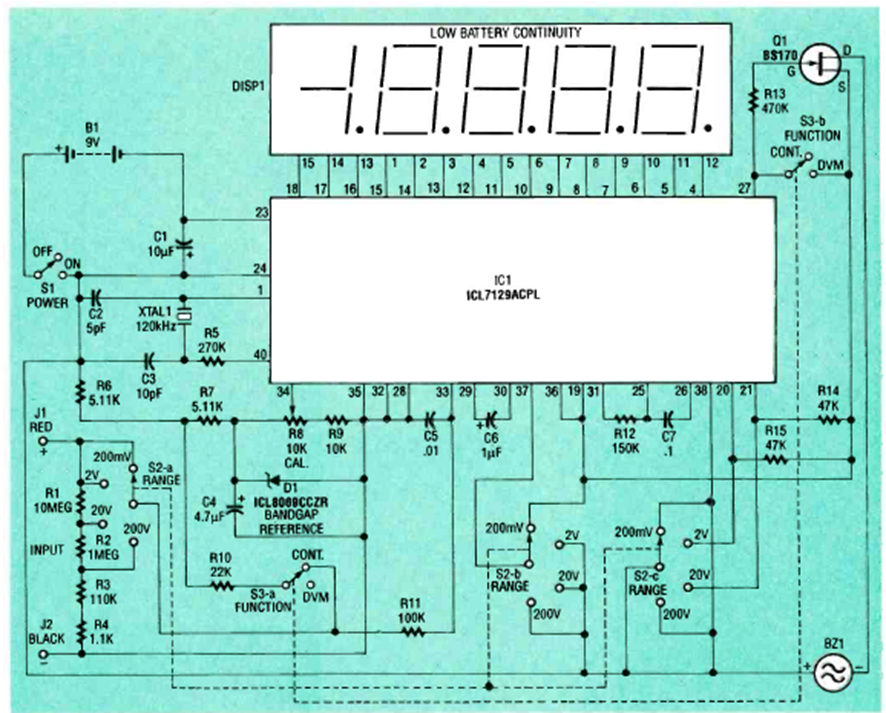

This 4 1/2 digit digital voltmeter circuit was published in the April 1993 Electronics Now magazine. The circuit uses the integrated component of the time and has 5 voltage ranges.
