10W Amplifier LM1875 (CB25523E)

Details
Written by: Newton C. Braga

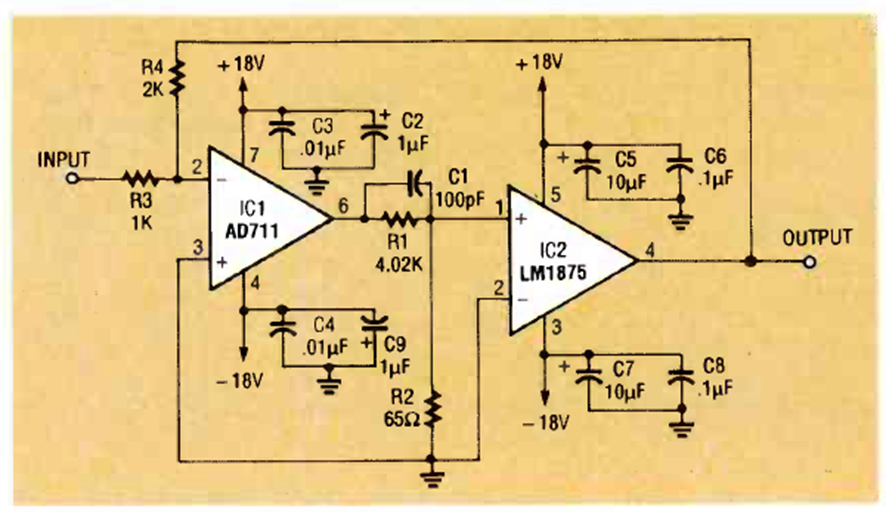

We found this circuit in the November 1992 issue of Radio Electronics magazine. The circuit has two integrated circuits, one of which is a preamplifier stage. The power supply must be dual.




| Clique na imagem para ampliar |
