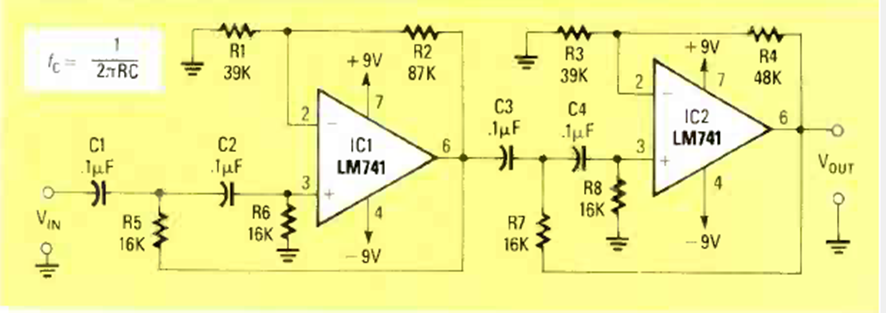

We found this circuit in the May 1989 Radio Electronics magazine. The circuit can have its values changed to operate at other frequencies and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Fourth-order high-pass filter LM741 (CB25935E)
- Details
- Written by: Newton C. Braga
