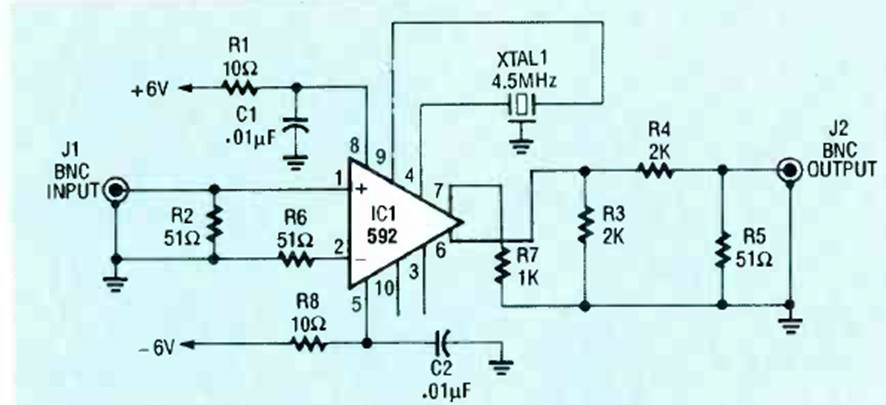

We found this 4.5 MHz amplifier for video signals from old analog TVs in the June 1992 issue of Radio Electronics magazine. It uses a 592 integrated circuit.
| Clique na imagem para ampliar |
Video Amplifier (CB25468E)
- Details
- Written by: Newton C. Braga
