Audio Expander (CB25560E)

Details
Written by: Newton C. Braga

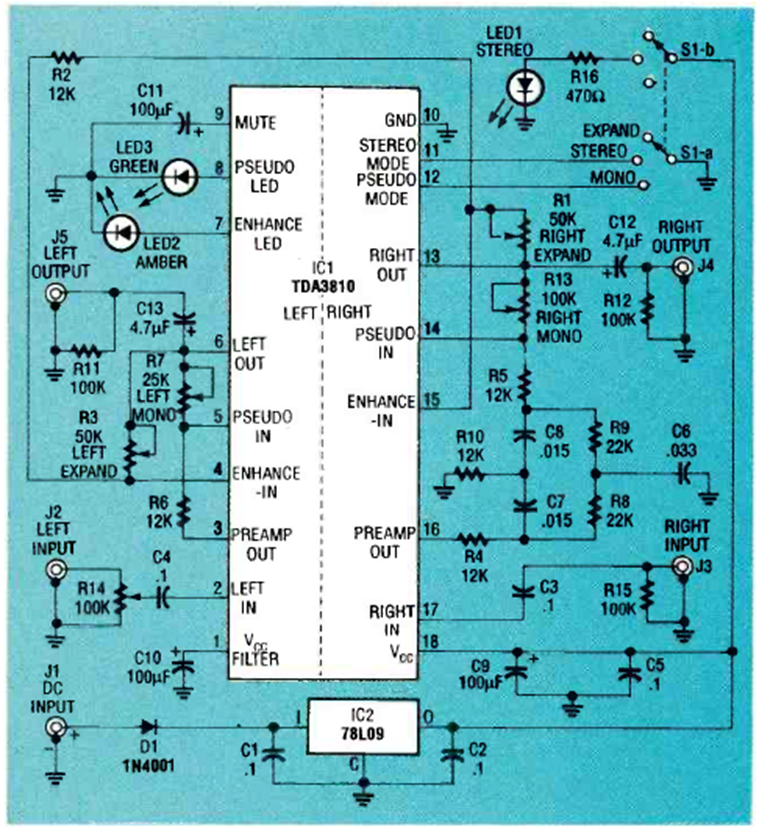

This circuit is based on the TDA3810N. We found it in the March 1992 issue of Radio Electronics magazine. The circuit consists of an audio processor capable of working with two audio channels.
