FSK Circuit (CB25781E)

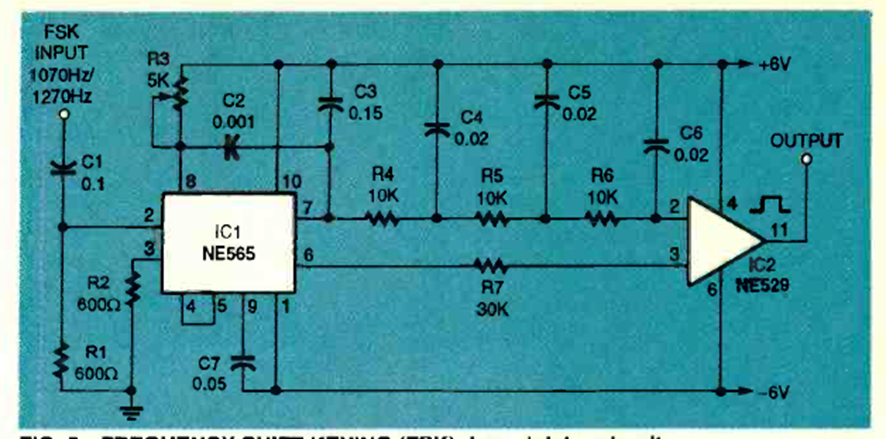

This frequency shift modulation circuit was found in the November 1994 issue of Electronics Now magazine. The circuit operates at low frequencies.

| Clique na imagem para ampliar |

Low active cycle pulse oscillator (CB8920E)
Short pulses can be found in this 90's EDN circuit. The load is 50 ohms and the transistors are from that...
1 to 20 MHz TTL Oscillator (CB6514E)
Found in an American 1980s documentation, this circuit generates frequencies in the range...
Push Pull Output Amplifier (CB950E)
This old configuration of an audio amplifier has a push-pull two-transistor output stage. Output...
