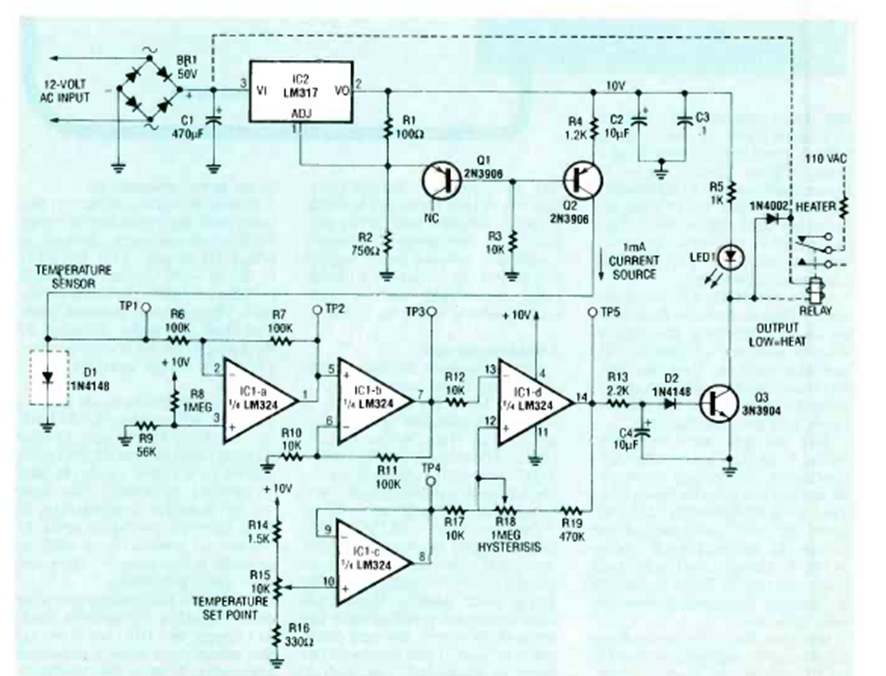

We found this circuit in the June 1992 issue of Radio Electronics magazine. The sensor is a common diode. The circuit is powered by the power grid from a 12 V transformer.
| Clique na imagem para ampliar |
Thermostat (CB25467E)
