The diodes in this circuit are used for waveform correction. The circuit is from Electronics Now and has its frequency and duty cycle determined by the capacitors.

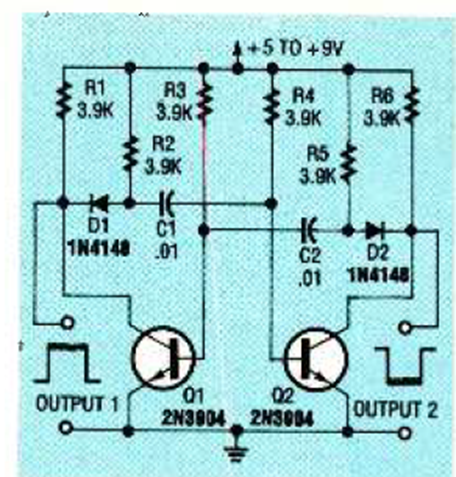

Astable with waveform correction (CB25653E)
- Details
- Written by: Newton C. Braga
The diodes in this circuit are used for waveform correction. The circuit is from Electronics Now and has its frequency and duty cycle determined by the capacitors.
