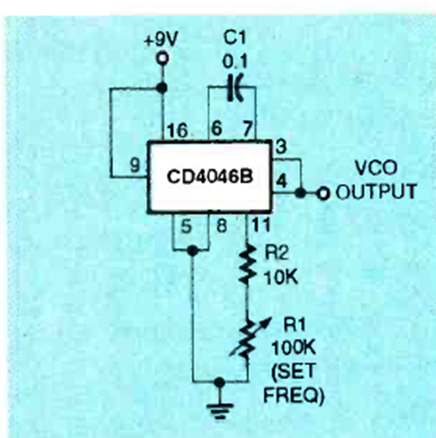

Rectangular generator with PLL 4046 (CB25752E)
- Details
- Written by: Newton C. Braga
This circuit produces signals in the range of 200 Hz to 2 kHz. We found it in the magazine Electronics Now of August 1994. The PLL used is not very common nowadays.
