Basic Treble Controls (CB25825E)

Details
Written by: Newton C. Braga

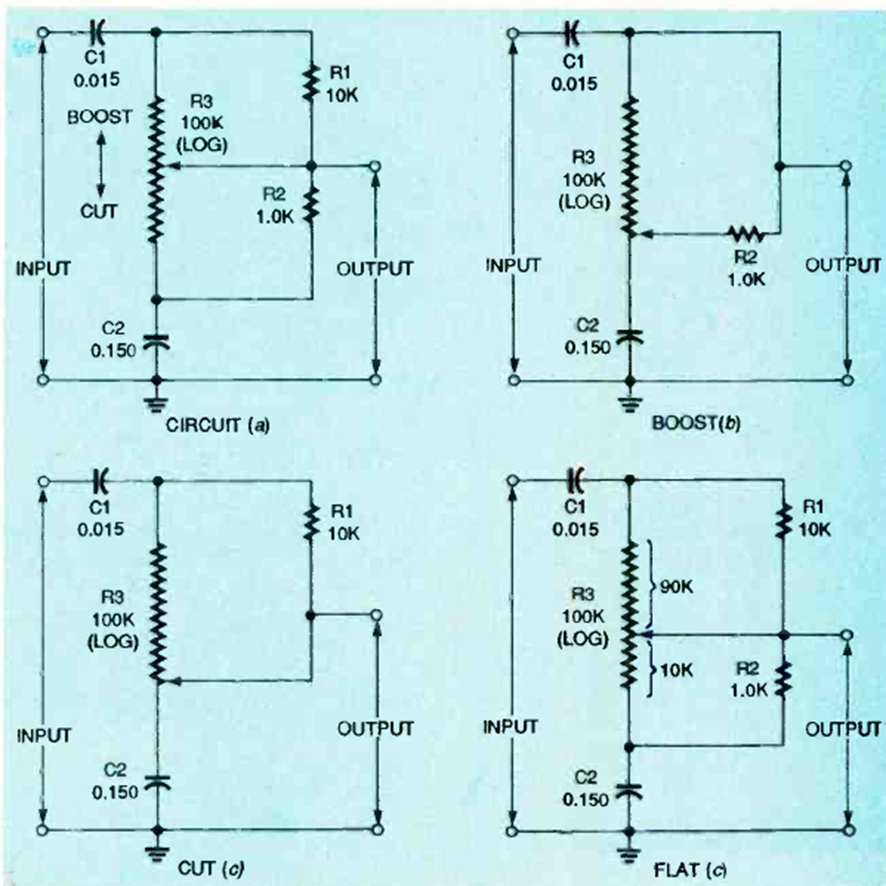

These circuits were found in the February 1995 issue of Electronics Now magazine. The circuits have normal response in (a), boost in (b), cut in (c), and plate response in (d).




| Clique na imagem para ampliar |
