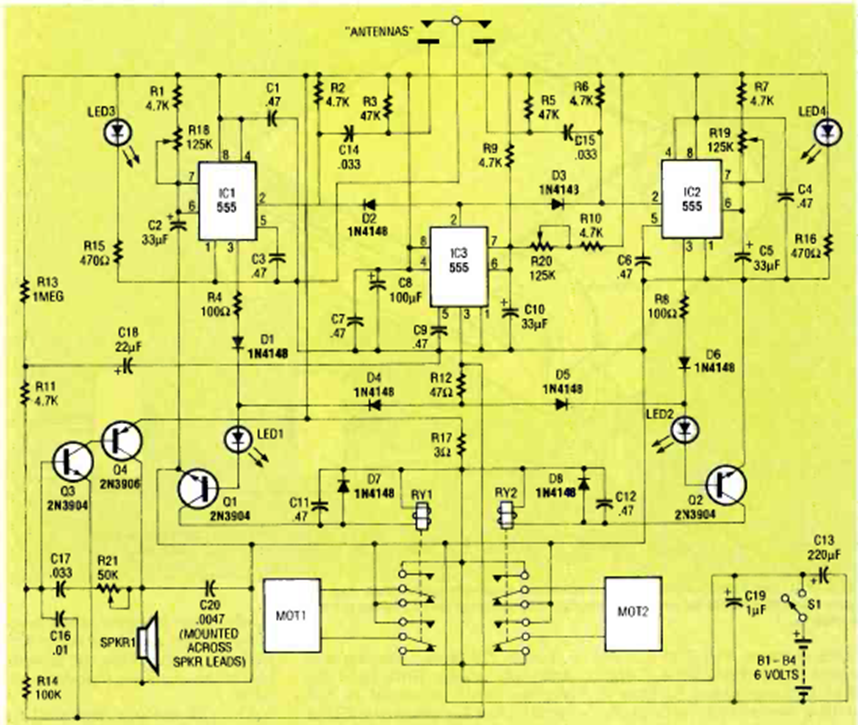

This is the circuit of a robot published in the June 1992 issue of Radio Electronics magazine. The sensors are used to drive 2 motors with reduction gears. The power is provided by batteries.
