Electronic Compass (CB25382E)

Details
Written by: Newton C. Braga

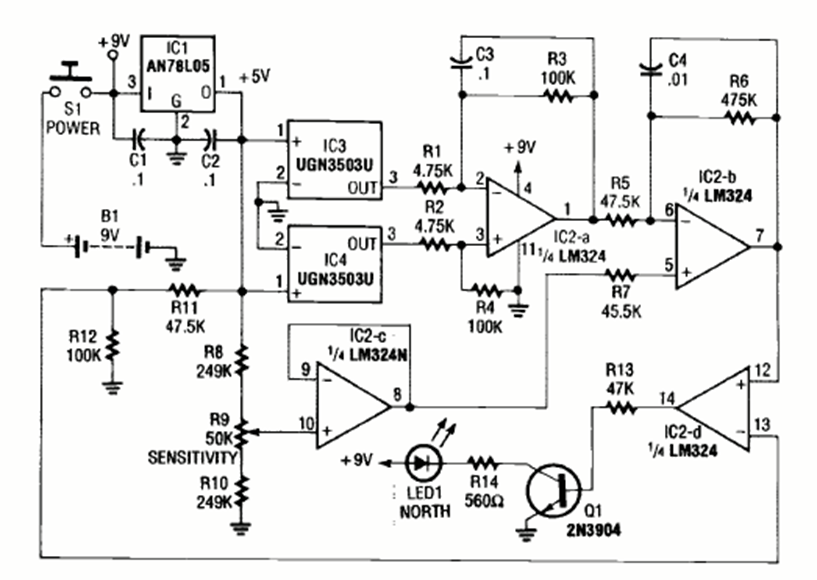

This circuit was found in the June 1991 issue of Radio Electronics magazine. The circuit uses two Hall effect sensors of the time. It can be assembled using modern equivalents.
