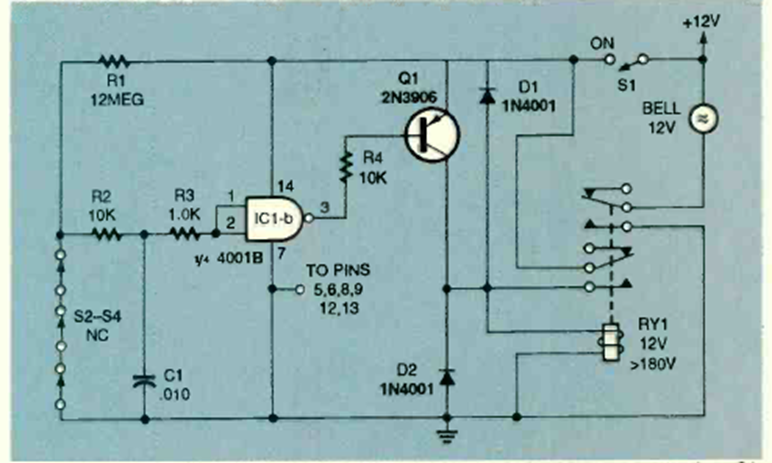

Alarm with NC sensors (CB25724E)

This alarm circuit with sensors in series was found in the Electronics Now magazine of June 1994. The circuit is powered according to the relay used.
