Tuned Shortwave Antenna (CB25749E)

Details
Written by: Newton C. Braga

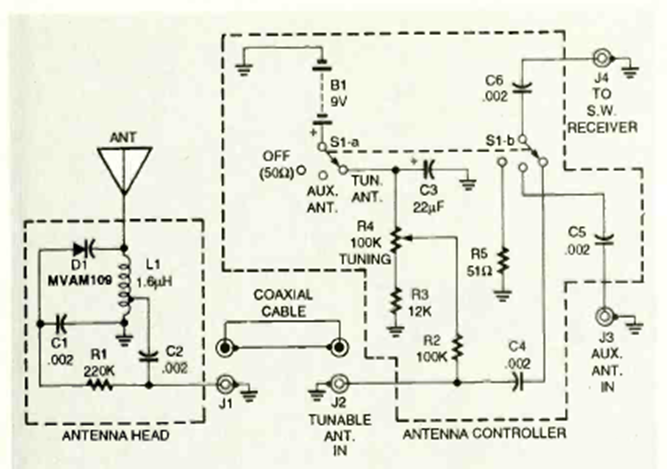

This shortwave preselector was found in the July 1994 issue of Radio Electronics magazine. The circuit is suitable for telescopic antennas, matching the impedance with the receiver used.
