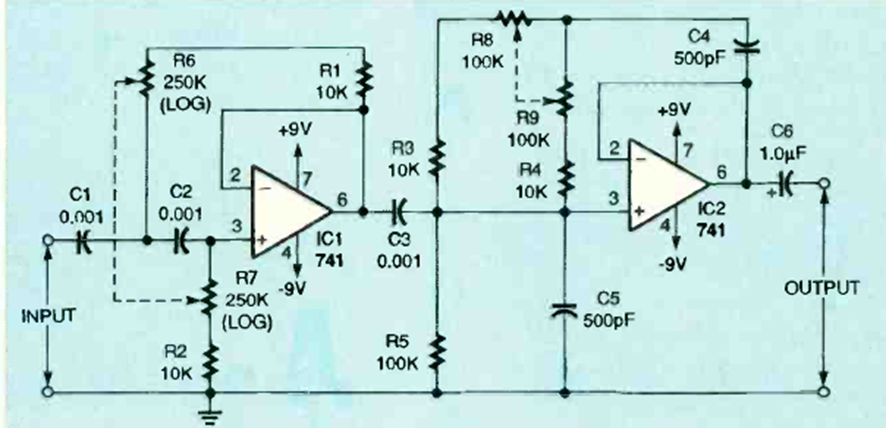

This filter for scratch and rumble noises that occur on turntables was found in the February 1995 issue of Electronnics Now. The operational amplifiers support equivalents and the source must be dual.
| Clique na imagem para ampliar |
Variable High and Low Pass Filter (CB25823E)
- Details
- Written by: Newton C. Braga
