Symmetrical 12 V power supply (CB25402E)

Details
Written by: Newton C. Braga

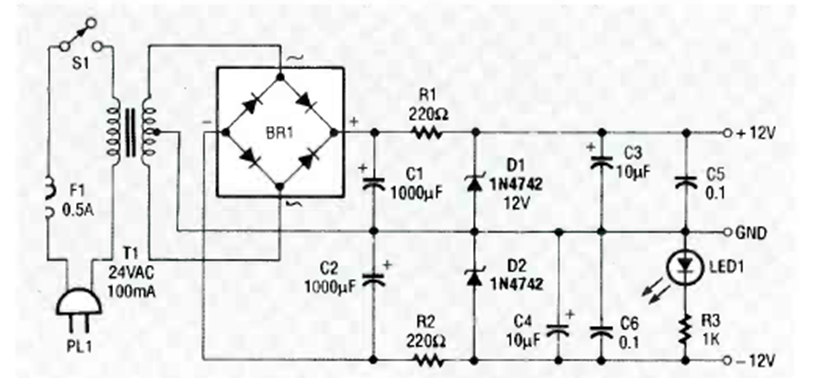

This circuit with current up to 100 mA according to the transformer was found in the Radio Electronics magazine of October 1991. The regulation is done directly by the zeners.
