Audio Level Controller (CB25551E)

Details
Written by: Newton C. Braga

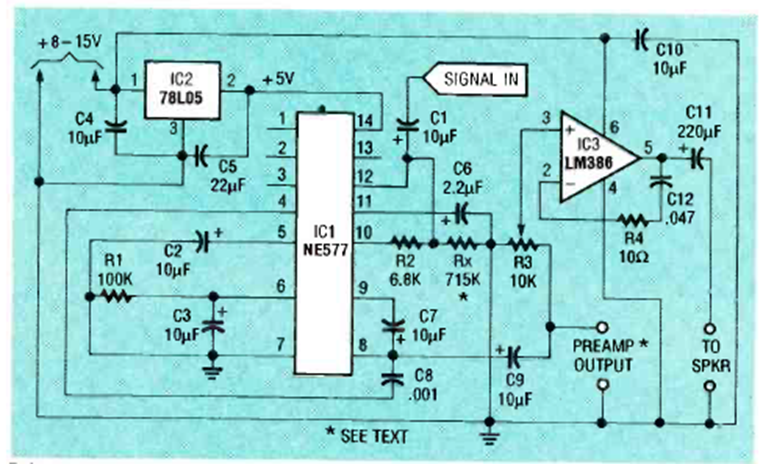

We found this circuit in the Radio Electronics magazine of February 1993. The main integrated circuit is from that time and the power supply is made with voltages of 6 to 15 V.
